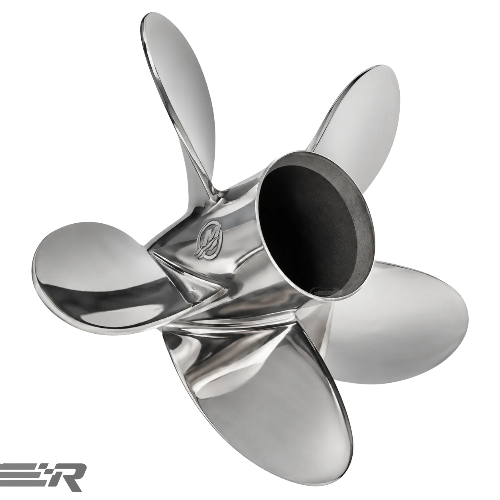

Mercury Racing MAX5 ST 15.25" x 26.5P Right-Hand 5-Blade Propeller 8M0156514

Mercury Racing MAX5 ST Propeller 8M0156514 is a lab-finished stainless steel 5-blade performance propeller with a 15.25-inch diameter, 26.5-inch pitch, and right-hand rotation. Mercury Racing's MAX5 ST specifications confirm the exact part number, pitch, diameter, and rotation.

The MAX5 ST was developed specifically for boats powered by the 4.6L V8 Mercury Racing 300R outboard with a Sport Master gearcase. Its shortened exhaust barrel and large 15.25-inch diameter help maintain propeller grip at elevated engine heights, including performance bass boat and twin-engine catamaran applications.

Specifications:

• Diameter: 15.25"
• Pitch: 26.5"
• Blades: 5
• Rotation: Right-Hand
• Material: Stainless steel
• Finish: Lab Finished
• Short-tube design
• Performance Vent System (PVS)
• Mercury Part Number: 8M0156514

The Performance Vent System (PVS) allows exhaust venting to be adjusted to help tune planing performance. The MAX5 ST series is offered in half-inch pitch increments to help dial in engine RPM and overall performance.

To Confirm Compatibility: Contact our team with your engine serial number and current propeller information at (727) 596-5929 before ordering.
